Product Description

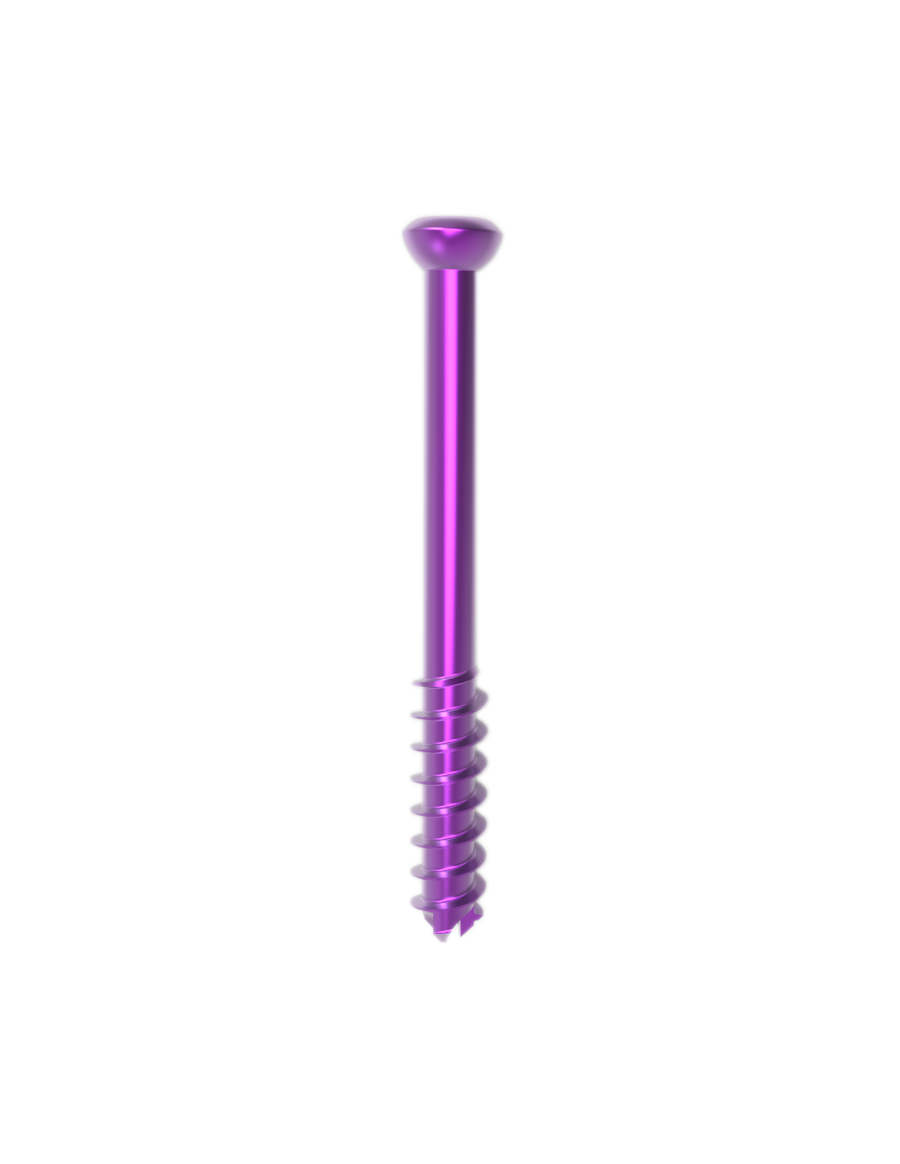

6.5 Headed
SYSTEM ADVANTAGES

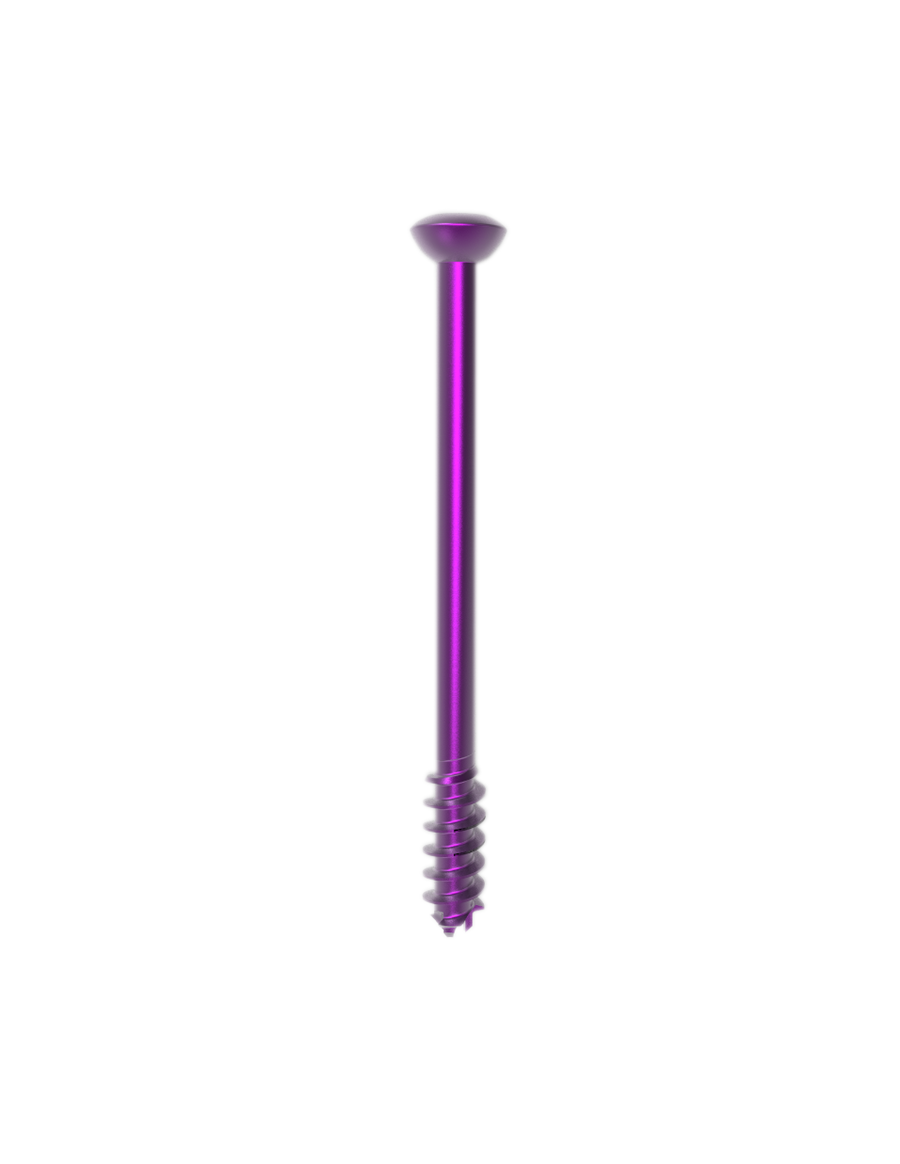

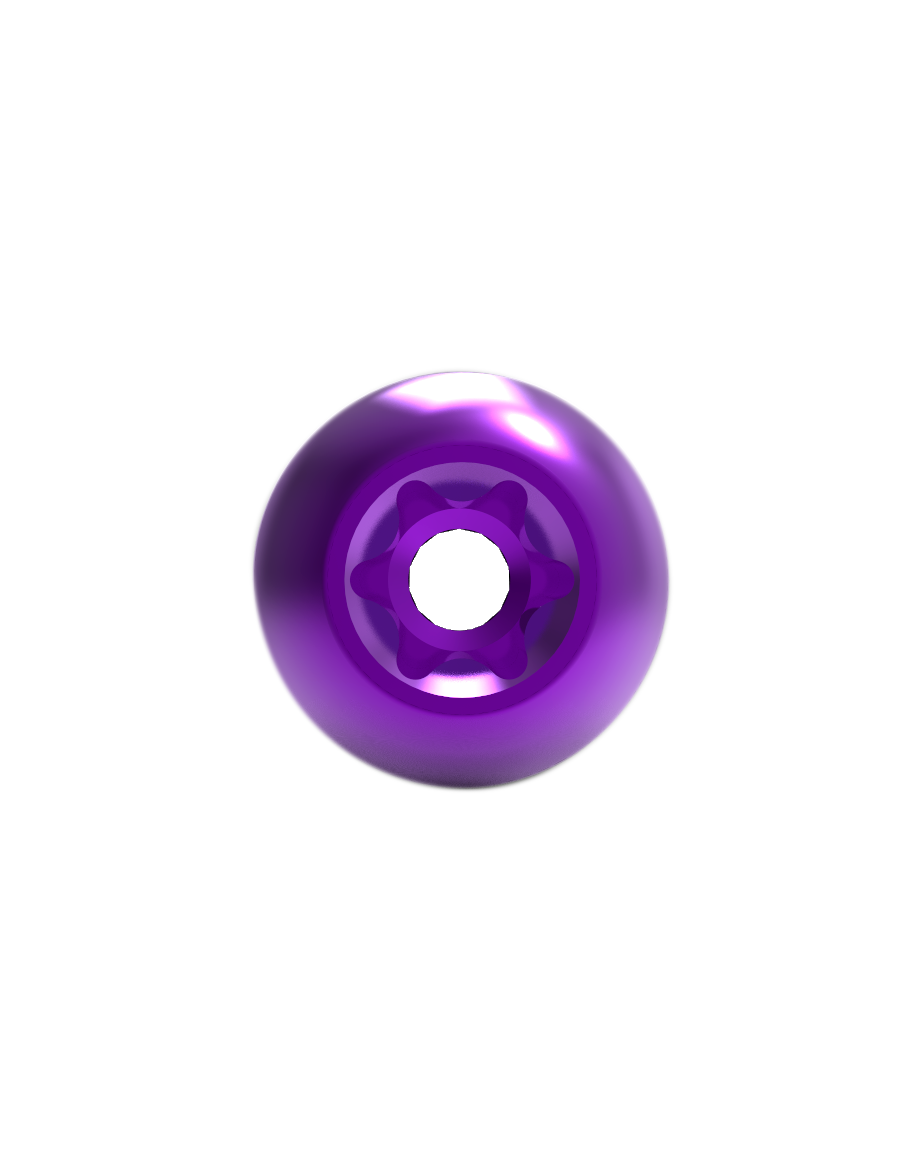

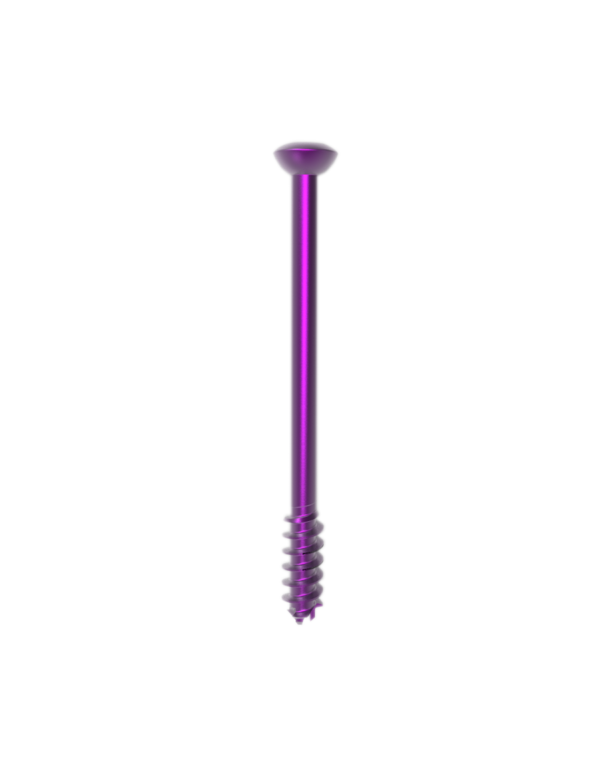

■ Low profile head cannulated titanium implants with Torx connection drive
■ Self-retaining Torx driver provides improved engagement and reduced head strippage
■ Modular caddy system contains implants and implant-specific guidewires, cannulated drills, countersink
and drivers
■ Complete range of Ø 4.5mm implant sizes in 2mm increments from 20mm to 40mm and 5mm
increments from 40mm to 110mm screw lengths
■ Complete range of Ø 6.5mm implant sizes in 2mm increments from 30mm to 40mm and 5mm
increments from 40mm to 120mm screw lengths
■ Screws incorporate self-drilling and self-tapping features
■ Quick connect instrumentation with ratcheting handles
■ Multiple thread lengths available
Description
The Orion Headed Screws are indicated for use in bone reconstruction, osteotomy, arthrodesis, joint fusion, fracture
repair, and fracture fixation of bones appropriate for the size of the device. Screws are intended for single use only.
Leave a reply
| LENGTH | SHORT THREAD | LONG THREAD | 30mm | HTR-04-654130 | HTR-04-654530 |
|---|---|---|
| 32mm | HTR-04-654232 | HTR-04-654632 |
| 34mm | HTR-04-654334 | HTR-04-654734 |
| 36mm | HTR-04-654436 | HTR-04-654836 |
| 38mm | HTR-04-654538 | HTR-04-654938 |
| 40mm | HTR-04-654640 | HTR-04-654140 |
| 45mm | HTR-04-654745 | HTR-04-654245 |
| 50mm | HTR-04-654850 | HTR-04-654350 |
| 55mm | HTR-04-654955 | HTR-04-654455 |
| 60mm | HTR-04-654160 | HTR-04-654560 |
| 65mm | HTR-04-654265 | HTR-04-654665 |
| 70mm | HTR-04-654370 | HTR-04-654770 |
| 75mm | HTR-04-654475 | HTR-04-654875 |
| 80mm | HTR-04-654580 | HTR-04-654980 |
| 85mm | HTR-04-654685 | HTR-04-654185 |
| 90mm | HTR-04-654790 | HTR-04-654290 |
| 95mm | HTR-04-654895 | HTR-04-654395 |
| 100mm | HTR-04-654900 | HTR-04-654400 |
| 105mm | HTR-04-654105 | HTR-04-654505 |
| 110mm | HTR-04-654210 | HTR-04-654610 |
| 115mm | HTR-04-654315 | HTR-04-654715 |
| 120mm | HTR-04-654420 | HTR-04-654820 |
