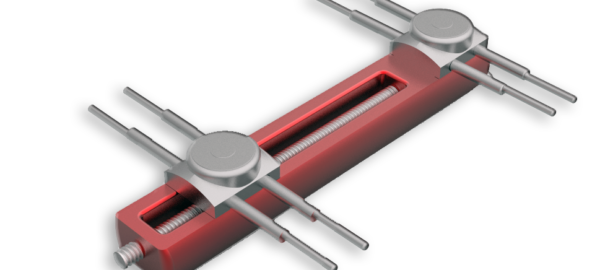

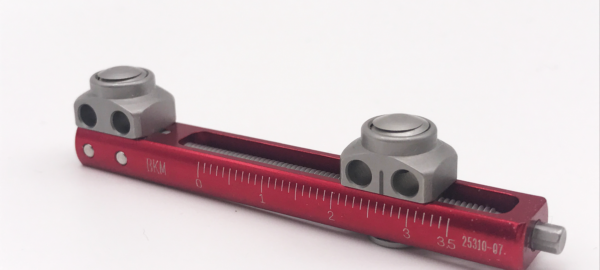

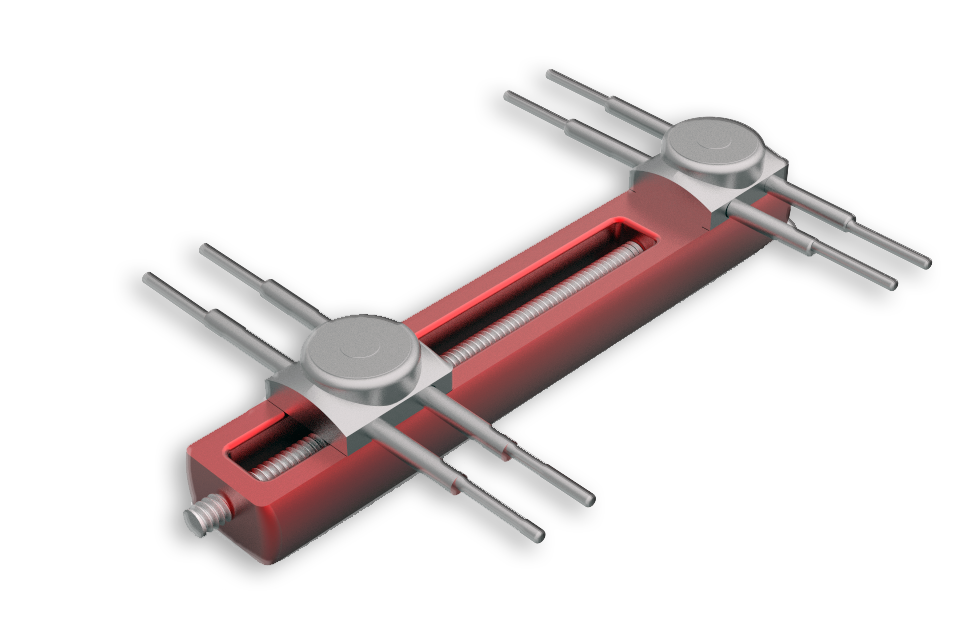

Mini kyros
EXTERNAL FIXATOR
![Mini Kyros Front page Mini Kyros Front page](https://www.hnmmedical.com/wp-content/uploads/2018/04/Mini-Kyros-Front-page-600x270.png)
- Open and/or closed Fractures
- Corrective Osteotomies
- Distraction lengthening of the metacarpals,
metatarsals and phalanges - Non-unions of the metacarpals and phalanges
Joint arthrodesis - Scalendication indication of distraction/compression permits approximately 25~35mm of travel for precise adjustment
![mini kyros render png mini kyros render png](https://www.hnmmedical.com/wp-content/uploads/2018/04/mini-kyros-render-png-600x270.png)
The benefits of using this system are as follows : minimal exposure of the skin on fracture site, no secondary procedure necessary to remove hardware adequate stability when internal fixation system may not be possible due to poor bone contact.
![Hand MIni Kyros 2 Hand MIni Kyros 2](https://www.hnmmedical.com/wp-content/uploads/2018/04/Hand-MIni-Kyros-2-600x270.png)
The system has 4 different sizes, which are Kyros Extor(ST)-Finger 7cm, 6cm and Kyros Extor(ST) Small Finger 3.6cm, 3cm. Main body of the Kyros Extor(ST) Finger system is manufactured from light weight aluminum alloy pin screws are made of 316L stainless steel as a suitable surgical implant grade described by ASTM standard F138.
Item #
HTR-43-105007
HTR-43-155110
HTR-43-155206
Description
MINI KYROS External Fixator
Pin Screw ø3.0mm – (100/15)
Pin Screw ø3.0mm – (60/15)
